M.A.R.K. Stack or M.A.R.K. OS #

The M.A.R.K. ( Macaroni Automated Repositories Kit ) stack could be see like a source-based OS with a name that reference the technologies used for his building, the automation that wants introduce and an acronym that reference the Iron Man Armor. The softwares change so fastly and to keep a system updates begin very hard for a distro. In MARK starting from the idea used in Funtoo, we want improve the automation and the pipeline of delivery of the packages in order to balance the speed and the choice of upgrading particular services and/or packages.

So, the main keys of MARK are:

1. automation: to reduce the effort on updates packages and keep the system updates is one of the main target. Automatic updates obviously will not be always easy to manage and a maintenance activity will be always needed, but the first target is try to reduce this effort and have a way to automatically receive news about the new versions. To do this, we use the mark-devkit tool that permits to define YAML file used to autogen new ebuild based on templates and to manage the comparition of ebuilds without kits and/or overlay available through Git repositories. The updates could be sent through direct commits or through Github PR.

2. dynamism: one of the pros of Gentoo and Funtoo is the easy way to add patches to upstream sources, at the same way we want follow this pattern and try to share an OS that is a good place for developers.

3. reproducibility: share technologies, how to configure it and using Opensource is one of the core and more important key of MARK OS. Without sharing the knowledge this world will never grow. So, another important point a bit complex, for a lot of reason and just for the volume of the documentation will be sharing our Distro from Scratch steps used in MARK.

Now the we have described the main principles under this stack it’s time to describe how the magic is started and how will be improved.

After the Funtoo shutdown in August 2024, Macaroni OS thanks to the support of the ex-Funtoo developers decides to start a new adventure to keep the system independent from other distro in order to have a better control of the system and avoid that external changes could be dangerous in the Macaroni OS itself. Obviously, starting from zero was not possible, and so, based of the experience get in Funtoo we have applied the first changed to the metatools, ego needed to create the base for what is been developed in one year and that will be evolved again in the future. But having a clear target, trying to join the two worlds and create a gate between the Anise/binary stack and the sourced-based world of MARK. But not only this, the Portage itself it’s a software created in Gentoo that will be replaced too in the future or at least we hope on this. Working on our free time doesn’t permit to share specific dates and/or milestone so what we can share is at least the plan.

Through this vision we are been really lucky to find our Sponsors, really thanks always for their support, and through them we also oriented the development of our tools to be more connected to their technologies in order to share the better experience possible to our users.

For this reason, the mark-devkit tool that is the main (but not the only) module used to keep the distfiles server updated is been developed to have a better integration with Object Store S3 exposed in CDN77.

Before enter in the details of our releases we want try to compare Gentoo, Funtoo and MARK in order to help users from these distro to understand the differences:

🚀 MARK vs Gentoo vs Funtoo #

💂 Stability Levels #

🐳 Container/Server releases #

For support MARK releases containers and servers oriented don’t require necessary tons of packages for Desktop stuff, and following this idea we have created the release mark-xl and mark-v with a subset of the packages. In addition, having less desktop packages with a lot of constraints and cross dependencies between permit to simplify the life of the solver, speedup the dependencies calculation and permit to experiment new new libraries, compiler, etc. reducing issues with the upgrade for ABI change not yet supported. So, this permits to experiment and move ahead packages on this releases without the pain on broken desktop softwares that are updates with less periodicity.

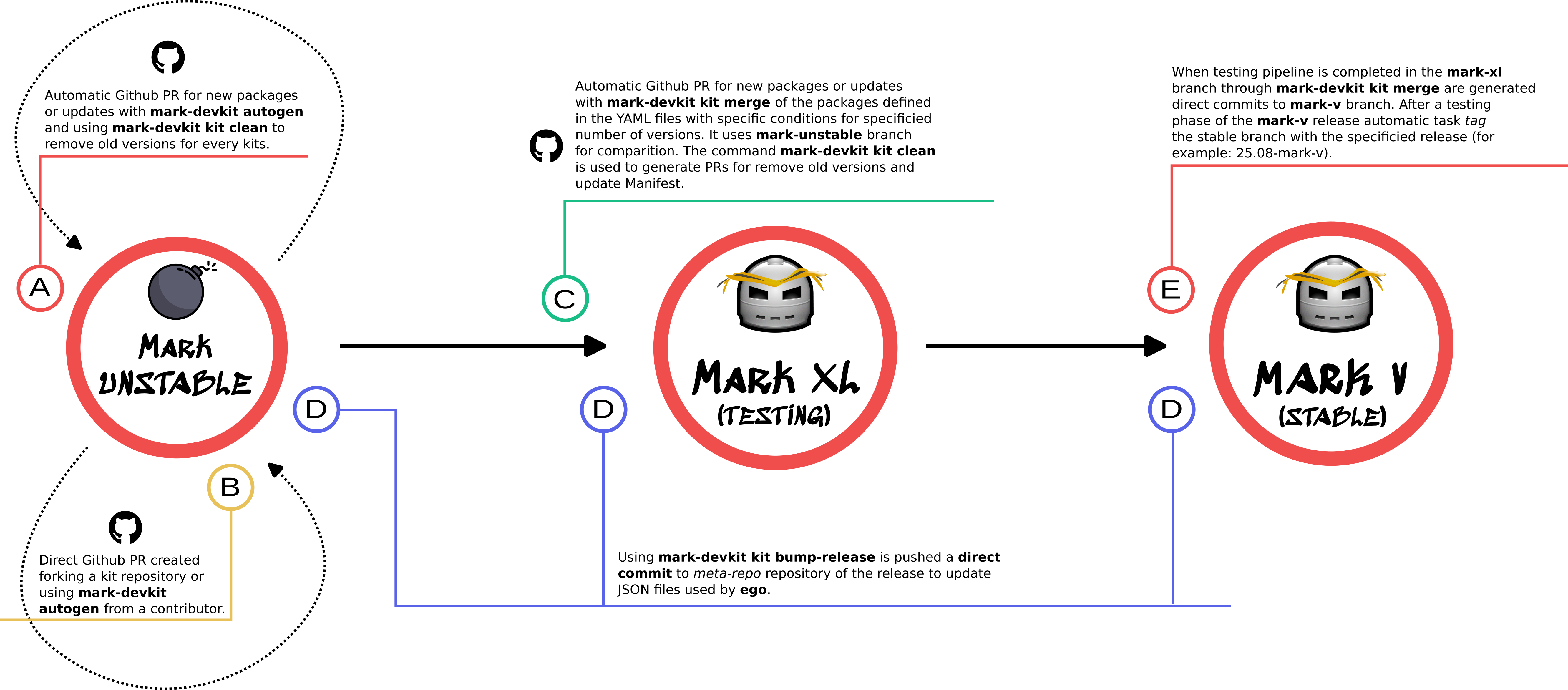

As visible from the schema, on mark-unstable the mark-bot automatically create new PR for the packages with autogen specs (through mark-devkit autogen command). But it’s also possible receive PR directly from contributors and/or developers. After a testing period the new versions pushed with other PRs to the mark-xl branch could be merged and moved to testing environment.

The mark-devkit kit bump-release is used to update the JSON files of the meta-repo repository in the branch related to the release that is later used by ego to fetch the Portage tree split in kits. This behaviour is also a protection about errors done in the kits that could be quickly reverted because until a new bump is done users will be synced to the git hash of the last bump in the kit updated. Cons is that until a new bump is done new updates will be not visible to users. Normally, an automatic task run every day in our CD/CI that try to bump a new update the align the JSON files to last commit of every kits.

The mark-devkit kit clean instead is used to generate PRs to remove versions of the packages exceeded the max number of version admitted by the YAML specs. Also in this case, the mark-bot task running for this is executed periodically from our CD/CI chain.

So, the mark-unstable release is the world of the chaos. We can push PR to upgrade and break everything. But better in an organized mode if it’s possible. It’s easy that this branch will be often broken because is where we do experiment with new versions and releases of the packages.

When a new package is been merged on mark-unstable the mark-bot checking for updates in the mark-xl branch creates new PRs for the testing branch that could be leave there until a testing phase is been done or just merged directly. If the mark-bot’s task is executed again and the PR for a specific package and version is already present, it just ignore the upgrade because already in the queue for a validation.

Depending of the level of upgrade, for example for patch release version (I mean following the semver paradigm) we could merge new versions with less attention because at the end also mark-xl is a testing branch and it’s possible that sometime a specific version could be broken. In that case, the developers can choice to fix the issue or just create a PR that revert the previous and waiting for a fix from mark-unstable.

At the end, after a testing period of the mark-xl branch, normally, this is also been with the creation of the new versions over the Macaroni Terragon and Eagle releases that automatically test the existing tree a manual task is fired over our CD/CI to execute mark-devkit kit merge that doesn’t use PR but just merge versions as a commits. Potentially, could be used PRs also on mark-v but we prefer using directly commit because when the new release is tagged through goreleaser tool we generate the ChangeLog automatically with the list of the new versions available.

The upgrade of the core packages (GCC, Glibc, etc.) will be always done before in these releases and later to the Desktop releases.

💻 Desktop releases #

The Desktop Linux world is something complex with tons of packages that are connected between them and is not easy planning specific upgrade without break the tree. For this reason we prefer keep a separated tree for Desktop respect the Container/Server and like describe before, it keeps a simple life for the solver with less packages.

Having multiple releases take more effort but we think that could be a choice right that permits to experiment in different way the upgrades.

For now, the only shared branch between the Desktop world and the Container/Server world is mark-unstable that share a common place where define the autogen specifications and later choice with mark-devkit kit merge of the upper branches what packages go where. It’s not excluded that in the future will not change.

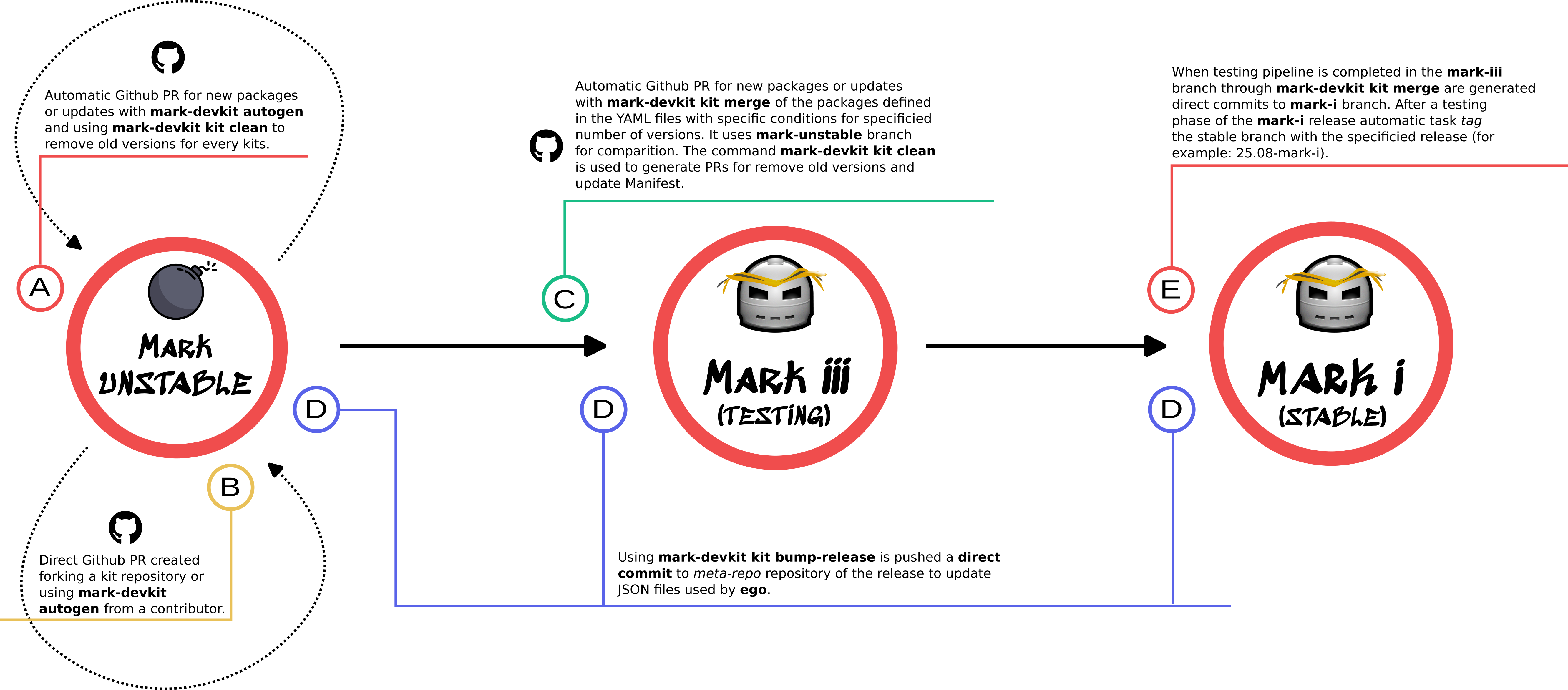

The logic describes in the previous chapter are pretty equal for the Desktop world, the difference is only that the testing branch of Desktop is mark-iii and the stable tree of the Desktop is mark-i.

🔬 Embedded releases #

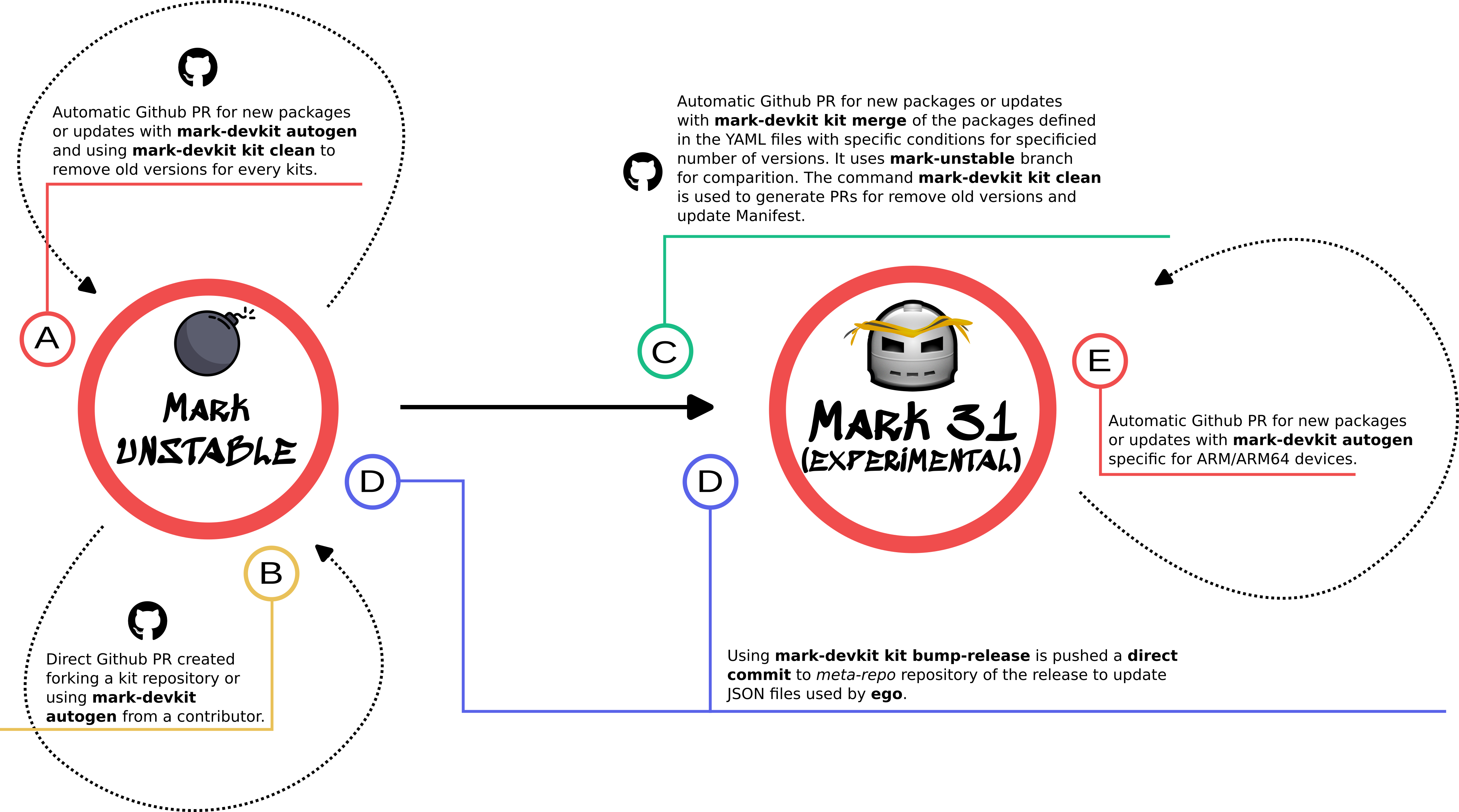

Not ready yet for end users we have started in August 2025 the branch mark-31 with the target to support ARM/ARM64 arches. We consider it experimental for now but when will be ready we will add testing and stable branches too.

So, the mark-31 branch could be considered like an unstable branch for embedded that receive incoming PRs from mark-unstable too.

Our target is to supply in the near future SD images for these devices as starting point:

- Raspberry PI4
- Banana PI
- Orange Pi
- Pine64

Stay tuned!

📦 Portage #

At the moment, Macaroni OS uses a forked version of Portage with original patches from Funtoo as main package manager system in MARK but with an eye for improve integration with anise and the Macaroni binary layer.

The Macaroni Portage fork follow the Funtoo/Gentoo paradigm where is used the ebuild to describe the steps to compile and install a package and different repositories (the kits) where aggregate specific packages for example about server services, networking, etc. Like described in The Story we love the core concepts used in FreeBSD, Gentoo and Funtoo about knobs/USE in order to customize easily a source-based distribution. These concepts will be always core elements also in the future when we will replace Portage itself.

Using different branches ensure different levels of stability already and so the behaviour of the KEYWORDS variable used in Gentoo is less important, indeed, normally we use the value * and in the future could be probably removed.

In a different way respect Gentoo and Funtoo, MARK doesn’t generate the overlay metadata cache directly in the exposed repository. The main reason is that is more simple to manage in an upgrade workflow based on Github PR that could be merged, reverted, etc. without introduce jobs to update constantly the same repository that receive the update of the package, etc. Without the metadata the emerge solver could be slow, but this could be solved with the execution of the command:

$> # As root user
$> for i in $(ls -1 /var/git/meta-repo/kits/) ; do egencache --update --repo=$i ; done
$> chown portage:portage -R /var/git/meta-repo/kits/

This step is temporary and managed automatically in the near future by the replacement of the ego tool.

The Bridge between Bashing and Solver #

As a core element of the integration between Portage and anise-portage-converter tool, it seems a good idea describe the changes originally done by Funtoo and later used in MARK to have a better integration and used by mark-devkit and before from metatools.

Portage, like a lot of Gentoo/Funtoo users know, uses the files .ebuild and .eclass to describe the build steps of a package. These files are elaborated using Bash through the core file ebuild.sh supplied inside the Portage:

$> anise q files portage | grep ebuild.sh
/usr/lib/portage/python3.9/ebuild.sh

This file is the main script that implements the ebuild engine:

1. it’s written in Bash and used by Portage to manage a package’s lifecycle.

2. provides all the standard functions that an ebuild can use, such as src_unpack, src_compile, src_install, etc.

3. handles the phases of an ebuild: unpack, prepare, configure, compile, test, install, package, merge, etc.

4. loads eclasses and applies shared logic across multiple ebuilds.

5. sets up the environment in which an ebuild runs (variables like S, WORKDIR, D, ED, PORTAGE_BUILDDIR, etc.).

6. essentially, it is the “skeleton” that translates ebuild syntax into concrete actions executed by the package manager.

The reason it’s under python3.9/ is that Portage itself is written in Python, but ebuilds are shell scripts. So Portage calls this ebuild.sh as a bridge between the Python world (Portage) and the Bash world (ebuilds).

In particular, the file ebuild.sh when used with the variable EBUILD_PHASE with value DEPEND, and with PORTAGE_PIPE_FD with value 1 permits to obtain from stdout the description of a specific package where is been executed the bash code. The output is split into multiple lines where every line has a specific meaning. The same output is the same written in the metadata cache files.

This the list of positional lines generated with the specific meaning:

    DEPEND RDEPEND SLOT SRC_URI RESTRICT HOMEPAGE LICENSE
    DESCRIPTION KEYWORDS INHERITED IUSE REQUIRED_USE PDEPEND BDEPEND
    EAPI PROPERTIES DEFINED_PHASES HDEPEND _PY_COMPAT
    UNUSED_03 UNUSED_02 UNUSED_01"

where:

1. DEPEND: this line contains the list of dependencies needed only for the build of a package

2. RDEPEND: this line contains the list of dependencies needed at runtime

3. SLOT: this line contains the SLOT of the package

4. SRC_URI: this line contains the list of the sources needed for build a package.

5. RESTRICT: this line contains the list of restriction applied in the building, for example, RESTRICT=“test” to avoid execution of the tests, etc.

6. HOMEPAGE: this line contains a list of URL with the homepage of the website related to the analyzed package.

7. LICENSE: this line contains the list of licenses of the package

8. DESCRIPTION: this line contains the description of the package

9. KEYWORDS: this line contains the arches enabled for the package. In Macaroni, like before in Funtoo normally is used *.

10. INHERITED: this line contains the list of the eclass used by the ebuild of the package

11. IUSE: this line contains the list of USE flags supported by the package

12. REQUIRED_USE: this line contains the condition used by the USE flags, for example REQUIRED_USE="gtk? ( gstreamer )" means that if the gtk USE flag is enable also the USE flag gstreamer must be set.

13. PDEPEND: this line contains the list of the optional dependencies that could be installed after the installation of the package

14. BDEPEND: this line contains the list of the dependencies strictly needed for build the package.

15. EAPI: this line contains the version of the Ebuild API used.

16. PROPERTIES: this line contains the properties of the package.

17. DEFINED_PHASES: this line contains the list of the phases defined and/or over-ridden in the ebuild, for example src_unpack, src_compile, etc.

18. HDEPEND: this line contains the list of hard dependencies for specific eclasses / helper packages.

19. _PY_COMPAT: this line contains the values of the PYTHON_COMPAT variable.

20. UNUSED_03, UNUSED_02, UNUSED_01: available for future changes.

The line/variable _PY_COMPAT is the change added in Funtoo where is reported the values of PYTHON_COMPAT variable defined in the analyzed ebuild and not present in Gentoo.

So, the Portage solver uses these information to elaborate dependencies and later start the emerge process.

The anise-portage-converter tool uses the ebuild.sh script (like visible here) to generate the JSON file with all the packages available in a specific kit and later used to generate anise spec files and/or used by mark-devkit to compare different branches.

The structure of the JSON file is pretty similar to the structure originally created by Daniel Robbins for the reposcan tool to support Macaroni OS bootstrap. For now we have keep the same structure for compatibility of the other Macaroni tools used to generate anise specs file but it could change in the near future.

Here, an example about how generate the JSON file of a specific kit to stdout:

$> anise-portage-converter  reposcan-generate --kit ai-kit --branch mark-unstable \
        --eclass-dir /var/git/meta-repo/kits/core-kit/ \
        ~/dev/macaroni/kits/ai-kit/ --concurrency 20 |  jq

{
  "cache_data_version": "1.0.6",
  "atoms": {
    "app-ai/llama-cpp-0.0.6327": {
      "atom": "app-ai/llama-cpp-0.0.6327",
      "category": "app-ai",
      "package": "llama-cpp",
      "revision": "0",
      "catpkg": "app-ai/llama-cpp",
      "eclasses": [
        [
          "toolchain-funcs",
          "24921b57d6561d87cbef4916a296ada4"
        ],
        [
          "multilib",
          "d410501a125f99ffb560b0c523cd3d1e"
        ],
        [
          "multiprocessing",
          "cac3169468f893670dac3e7cb940e045"
        ],
        [
          "ninja-utils",
          "e7575bc4a90349d76e72777013b2bbc2"
        ],
        [
          "eutils",
          "6e6c2737b59a4b982de6fb3ecefd87f8"
        ],
        [
          "flag-o-matic",
          "d0939f99dd528dd0c5ec25284877bf5c"
        ],
        [
          "xdg-utils",
          "14d00d009167652b1fa363e55effe213"
        ],
        [
          "cmake",
          "ac7cb516f6a288b6a82bc0649ce49878"
        ]
      ],
      "kit": "ai-kit",
      "branch": "mark-unstable",
      "relations": [
        "dev-util/vulkan-headers",
        "dev-util/ninja",
        "dev-util/cmake",
        "x11-drivers/nvidia-drivers",
        "dev-util/vulkan-tools",
        "media-libs/vulkan-layers",
        "media-libs/vulkan-loader",
        "media-libs/shaderc",
        "sci-libs/gsl",
        "virtual/blas",
        "virtual/lapack"
      ],
      "relations_by_kind": {
        "BDEPEND": [
          "dev-util/vulkan-headers",
          "dev-util/ninja",
          "dev-util/cmake"
        ],
        "DEPEND": [
          "x11-drivers/nvidia-drivers",
          "dev-util/vulkan-tools",
          "media-libs/vulkan-layers",
          "media-libs/vulkan-loader",
          "media-libs/shaderc",
          "sci-libs/gsl",
          "virtual/blas",
          "virtual/lapack"
        ],
        "RDEPEND": [
          "x11-drivers/nvidia-drivers",
          "dev-util/vulkan-tools",
          "media-libs/vulkan-layers",
          "media-libs/vulkan-loader",
          "media-libs/shaderc",
          "sci-libs/gsl",
          "virtual/blas",
          "virtual/lapack"
        ]
      },
      "metadata": {
        "BDEPEND": "vulkan? ( dev-util/vulkan-headers ) dev-util/ninja dev-util/cmake",
        "DEFINED_PHASES": "compile configure install prepare test",
        "DEPEND": "cuda? ( x11-drivers/nvidia-drivers ) vulkan? ( dev-util/vulkan-tools media-libs/vulkan-layers media-libs/vulkan-loader media-libs/shaderc sci-libs/gsl ) blas? ( virtual/blas virtual/lapack )",
        "DESCRIPTION": "LLM inference in C/C++",
        "EAPI": "7",
        "HDEPEND": "",
        "HOMEPAGE": "https://github.com/ggml-org/llama.cpp",
        "INHERITED": "toolchain-funcs multilib multiprocessing ninja-utils eutils flag-o-matic xdg-utils cmake",
        "IUSE": "static blas cuda vulkan",
        "KEYWORDS": "*",
        "LICENSE": "MIT",
        "PDEPEND": "",
        "PROPERTIES": "",
        "PYTHON_COMPAT": "",
        "RDEPEND": "cuda? ( x11-drivers/nvidia-drivers ) vulkan? ( dev-util/vulkan-tools media-libs/vulkan-layers media-libs/vulkan-loader media-libs/shaderc sci-libs/gsl ) blas? ( virtual/blas virtual/lapack )",
        "REQUIRED_USE": "",
        "RESTRICT": "",
        "SLOT": "0",
        "SRC_URI": "https://api.github.com/repos/ggml-org/llama.cpp/tarball/b6327 -> llama-cpp-0.0.6327-4d74393.tar.gz"
      },
      "metadata_out": "cuda? ( x11-drivers/nvidia-drivers ) vulkan? ( dev-util/vulkan-tools media-libs/vulkan-layers media-libs/vulkan-loader media-libs/shaderc sci-libs/gsl ) blas? ( virtual/blas virtual/lapack )\ncuda? ( x11-drivers/nvidia-drivers ) vulkan? ( dev-util/vulkan-tools media-libs/vulkan-layers media-libs/vulkan-loader media-libs/shaderc sci-libs/gsl ) blas? ( virtual/blas virtual/lapack )\n0\nhttps://api.github.com/repos/ggml-org/llama.cpp/tarball/b6327 -> llama-cpp-0.0.6327-4d74393.tar.gz\n\nhttps://github.com/ggml-org/llama.cpp\nMIT\nLLM inference in C/C++\n*\ntoolchain-funcs multilib multiprocessing ninja-utils eutils flag-o-matic xdg-utils cmake\nstatic blas cuda vulkan\n\n\nvulkan? ( dev-util/vulkan-headers ) dev-util/ninja dev-util/cmake\n7\n\ncompile configure install prepare test\n\n\n\n\n\n",
      "manifest_md5": "524cff112b1038d03d32c97cbda0a829",
      "md5": "eb27bb05670f95f1dd860d03b0dabd7b",
      "files": [
        {
          "src_uri": [
            "https://api.github.com/repos/ggml-org/llama.cpp/tarball/b6327"
          ],
          "size": "25625309",
          "hashes": {
            "blake2b": "562e1245ff03a8f4b33375bcff07b7eb8016d271d3afdab69096fd9e4e10bcffca270e8d4293f62cb9d44fab01afb92c1697c328f6b298c2cd5178808c0bbe12",
            "sha512": "095aa4964b7eee946d600f63546f2ba4a4e61841ab21e9bf1778d1c8e641e164385ceca275080f9a272882c5c7eaba09e7a2df6fc2e53b4d9174c11b57df1b7d"
          },
          "name": "llama-cpp-0.0.6327-4d74393.tar.gz"
        }
      ]
    },
    "app-ai/llama-cpp-0.0.6402": {
    ...

or to a specific file:

$> anise-portage-converter  reposcan-generate --kit ai-kit --branch mark-unstable \
        --eclass-dir /var/git/meta-repo/kits/core-kit/ \
        ~/dev/macaroni/kits/ai-kit/ --concurrency 20 \
        -o file -f /tmp/ai-kit-mark-unstable

where the convention of the target file is <kit-name>-<kit-branch>.

The ebuild.sh script is an important point where will be possible to integrate new technologies without replace totally Portage at the begin.

Impacts on upgrading Python release #

Considering that Portage engine is written in Python and a lot of packages using PYTHON_COMPAT through the evoluted syntax introduced by Funtoo about python3+ to automatically support all available Python versions we share especially for staff developers a list of important points to verify on upgrading Python release:

1. anise-portage-converter: as a core tool of the Macaroni workflow this tool must be updated to support a new release on expand python3+ string. So, it’s important check the supported implementations.

2. python-utils-r1.eclass: another core eclass used in the Portage engine to expand python3+ string. It’s needed check the _python_set_impls function and update it with new Python releases

3. python-kit profile: modify the make.defaults file with the correct value for the variables PYTHON_TARGETS and PYTHON_SINGLE_TARGET.
